Alarm Point Distance Locator

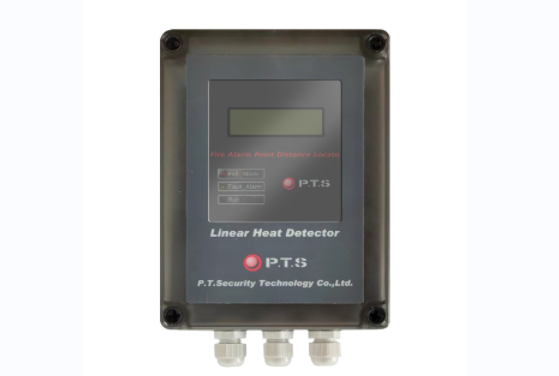

Alarm Point Distance Locator MS1000-L is a controlling device to monitor the temperature change of linear heat cable and is connected to fire alarm control panel via input module.

Descriptions

Alarm Point Distance Locator MS1000-L is a controlling device to monitor the temperature change of linear heat cable and is connected to fire alarm control panel via input module.

MS1000-L performs continuous monitoring over fire alarm and open circuit of monitored area with the function of fire alarm location.. These alarming signals are shown on the LCD and indicators of MS1000-L.

Since fire alarm has locking function, MS1000-L must be disconnected to power and reset after ALARM. While fault function could automatically reset, it means that after the clearing fault, the fault signal of MS1000-L is automatically cleared.


Features and benefits

Various alarming information could be shown on its screen.

The detector has high ability of interruption resistance adopting fine grounding measurement, isolation test and software interruption resistance technique. It is able to apply in places with high electromagnetic field interruption.


Specifications

 Name

 Alarm Point Distance Locator

Termination Unit

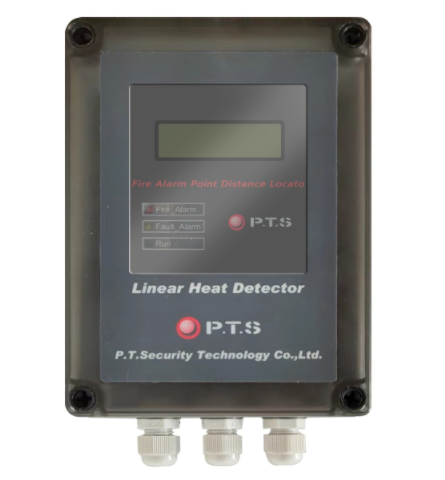

微信截图_20221223154109

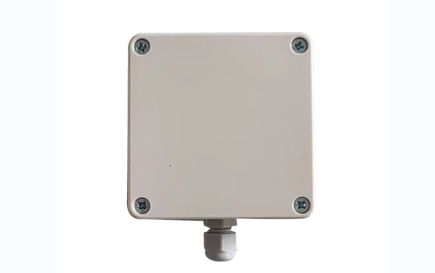

微信截图_20221223154136

Materials of Shell

Plastic shell with LCD

Plastic

Operating Voltage

24VDC

No Electricity

Allowed Voltage Range

16VDC-28VDC

Operating Current

Standby Current: ≤60mA

Alarm Current: ≤80mA

Status indication

Normal operation: green indicator constantly lights

Fixed temp fire alarm: red indicator constantly lights

Fault: yellow indicator constantly lights

Operating environment

Temperature:10℃+50℃

Relative humidity: 95%, no condensation

Position accuracy

10m or no longer than 5% of full length (under 25℃ environment)

Dimensions

180mm*130mm*60mm (L*W*H)

130mm× 60mm×18mm (L*W*H)

IP rating:

IP66

Detection length

No longer than 500 meter

Approvals

CE, EAC
