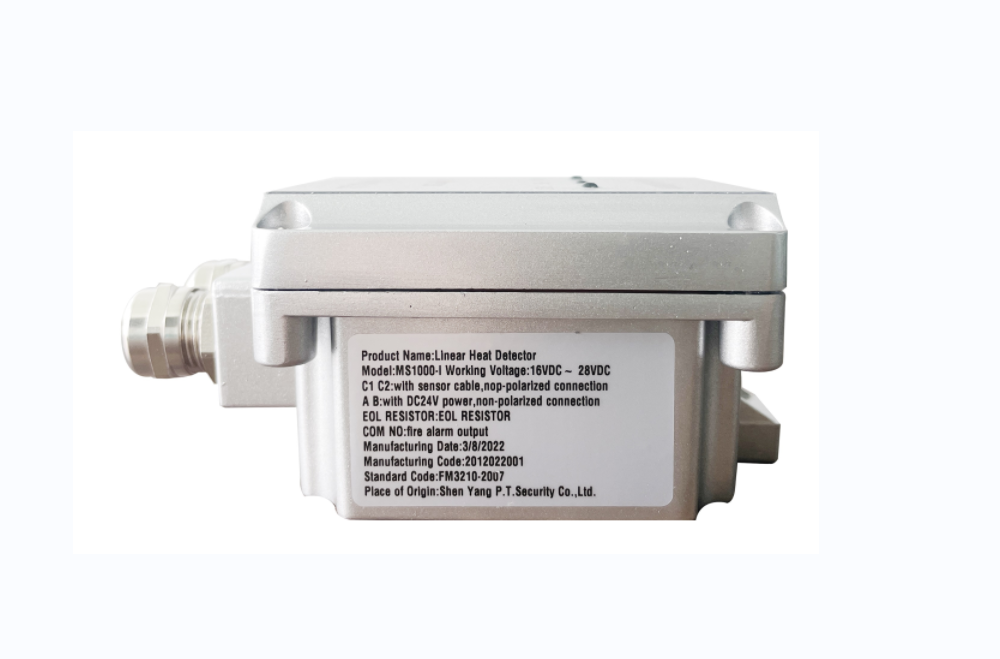

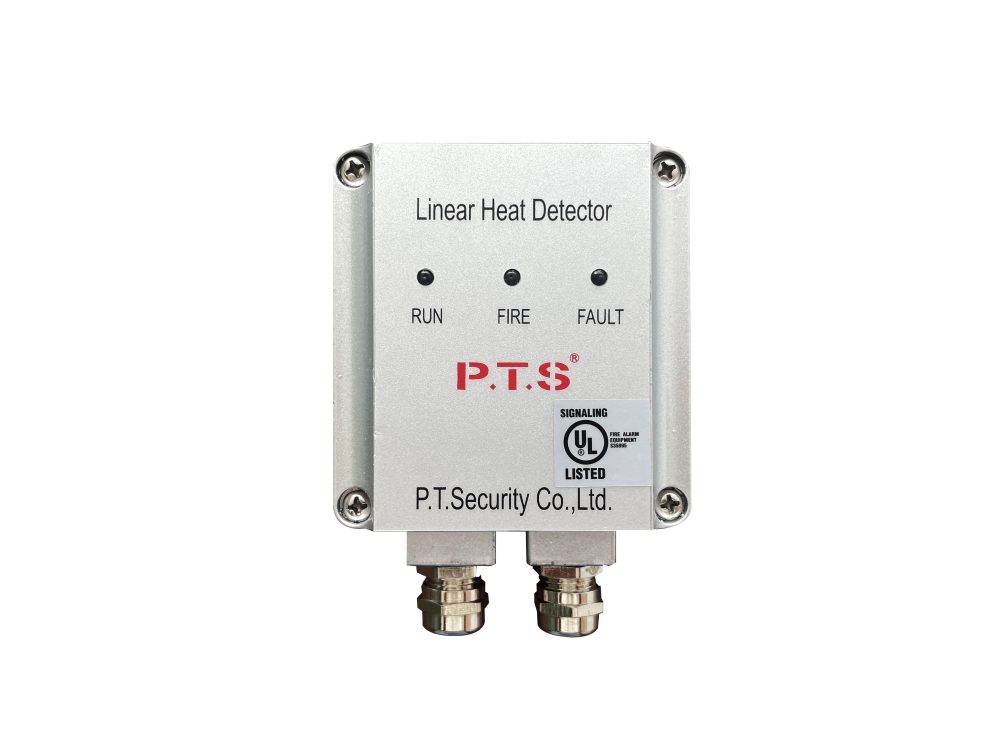

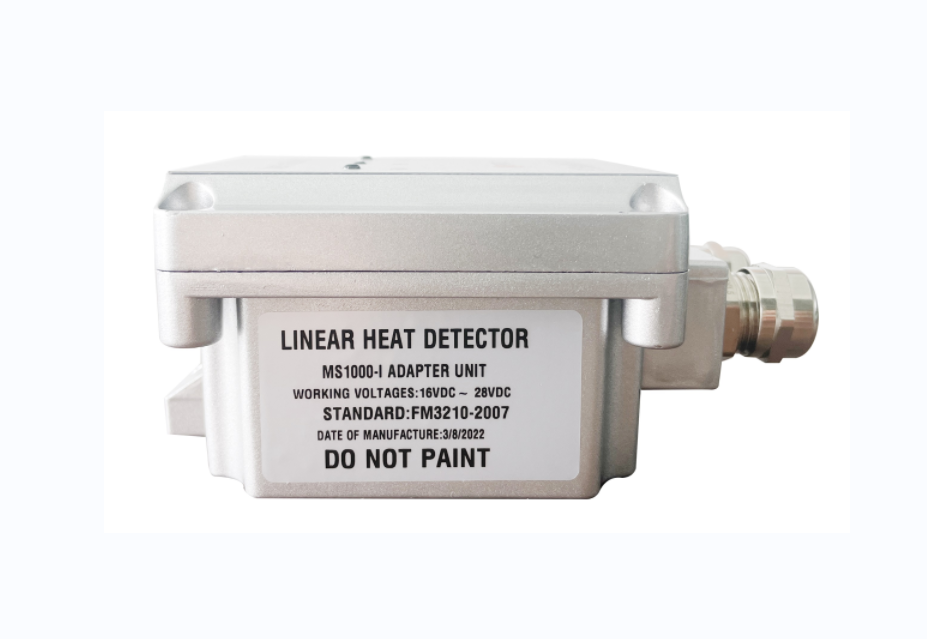

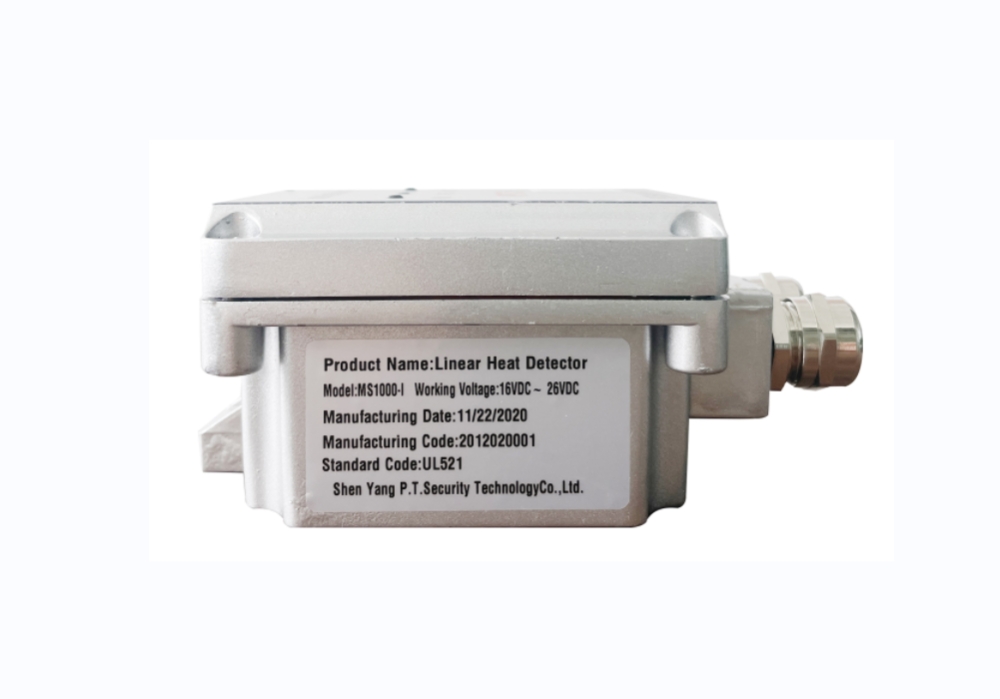

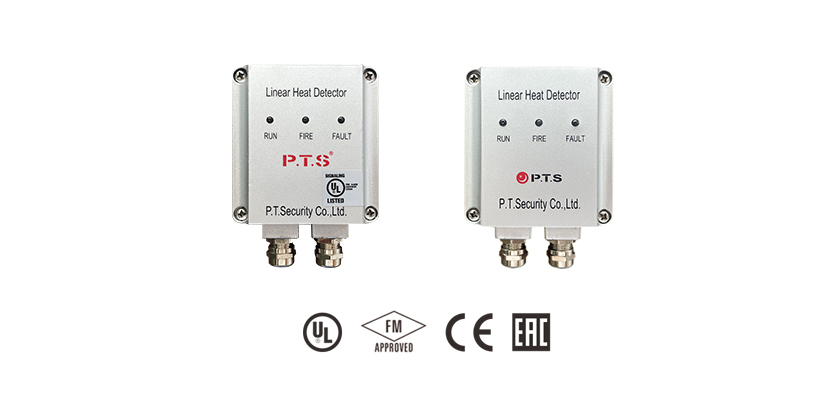

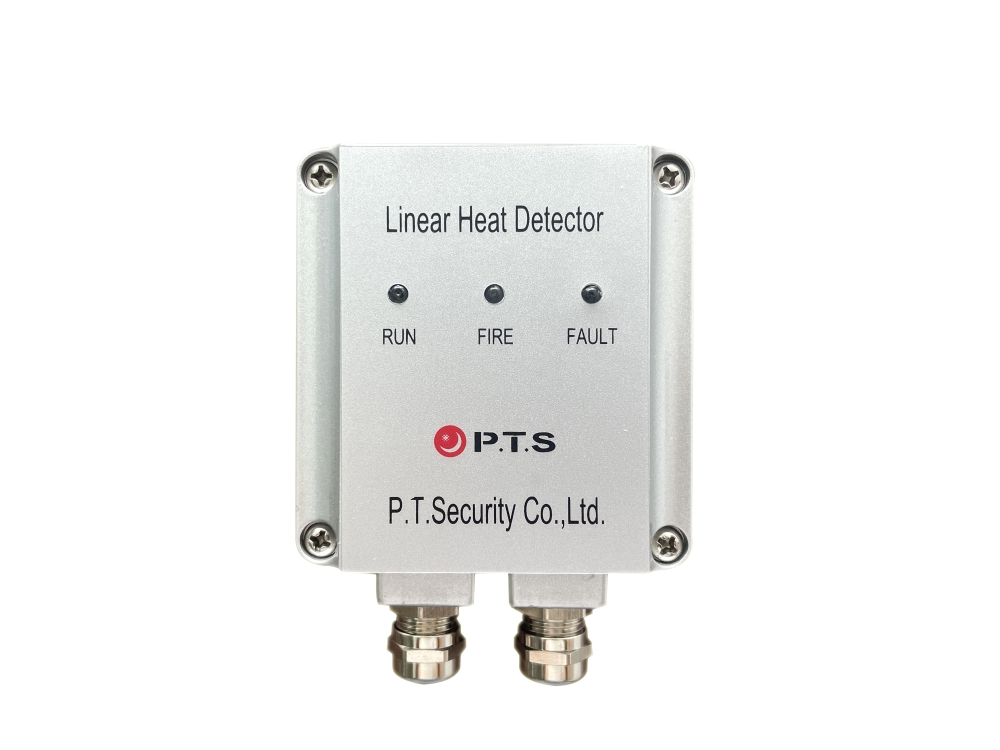

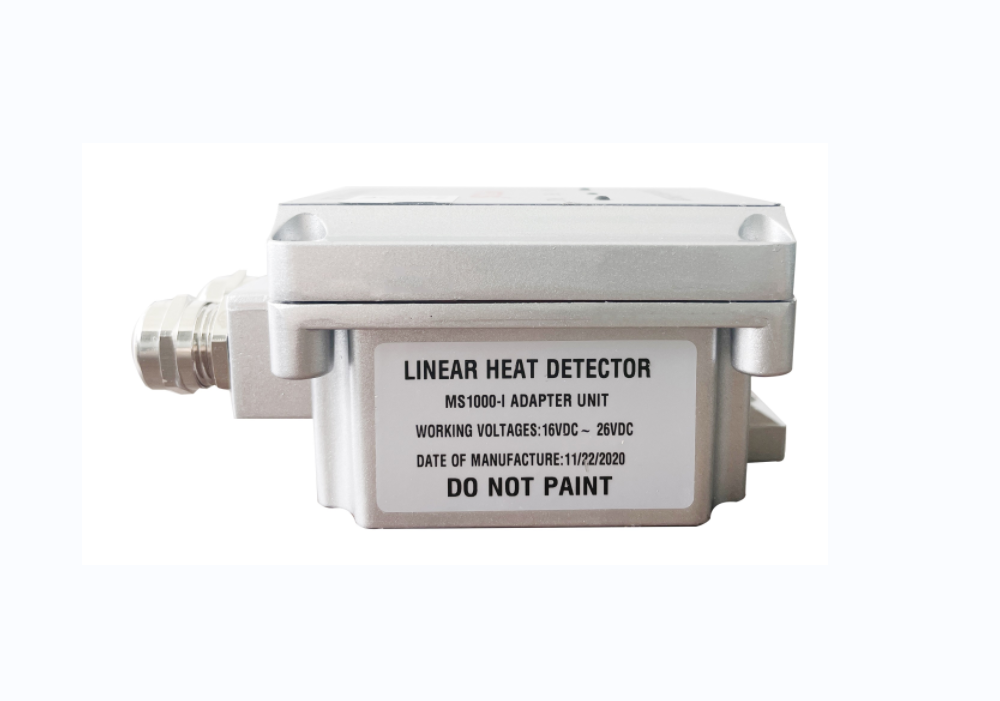

Adapter Unit

Adapter Unit MS1000-I is used for Linear Heat Cable of MS1000 Conventional type, MS1000 CR/OD type and MS1000 EP type. It is used for monitoring and detecting linear heat cable temperature fluctuation, fire alarm and fault signals discharge. Linear Heat Detector is easy to install and operate.

Features and Benefitsadapter 1

1. Industrial safety design

2. Detect heat at any point along its length

3. Electrical interface with low power consumption design

4. Real-time monitoring

5. Working with 24 VDC supply or without 24VDC supply

6. Fast response

7. No alarm temperature compensation required

8. Compatible to any kind fire alarm system

Automatic Fire Alarm Control System   新名称系统图1000.jpg

Technical parametersf4b3d11408ea5417e87314ec2f135ee.jpg

● Operating Voltage: 24VDC

● Allowed Voltage Range: 16VDC~28VDC

● Operating Current:

   Standby Current: ≤20mA

   Fire Current: ≤35mA

   Fault Current: ≤25mA

● Operating environment:


   Relative humidity: 95%

● Aluminum alloy Shell

● IP Rating: IP66

Working Principle

Compared with other kinds of detectors, MS1000 Digital Linear Heat Detector functions on a very-early detection and alarm for the protected context. The detector can be known as an intelligent “switch” type detector. When the temperature meets or exceeds the specific fixed temperature, the NTC heat sensitive material which covers the two conductors softens and fuses, the contact of conductors will cause a short circuit, this short circuit will trigger the alarm directly. The detector has a continuous sensitivity. The sensitivity of linear heat detector will not be influenced by the environment temperature changing and the length of detection cable using. It does not need to be adjusted and temperature compensation. The detector can transfer both alarm and fault signals to fire alarm panel through its control unit normally with DC24V.
