Specially designed for the steel structure protection object which is not convenient for the fixed installation of linear hear cable, it can be widely used in transformer, oil tank, distribution board, bridge, conveyor belt of the oil tank, steel, metallurgy, petrochemical substation of power plant etc.
Specially designed for the steel structure protection object which is not convenient for the fixed installation of linear heat cable, it can be widely used in transformer, oil tank, distribution board, bridge, conveyor belt of the oil tank, steel, metallurgy, petrochemical substation of power plant etc.
Specifications
Accessories | Picture | Size | Features | Application | Working Temperature | |

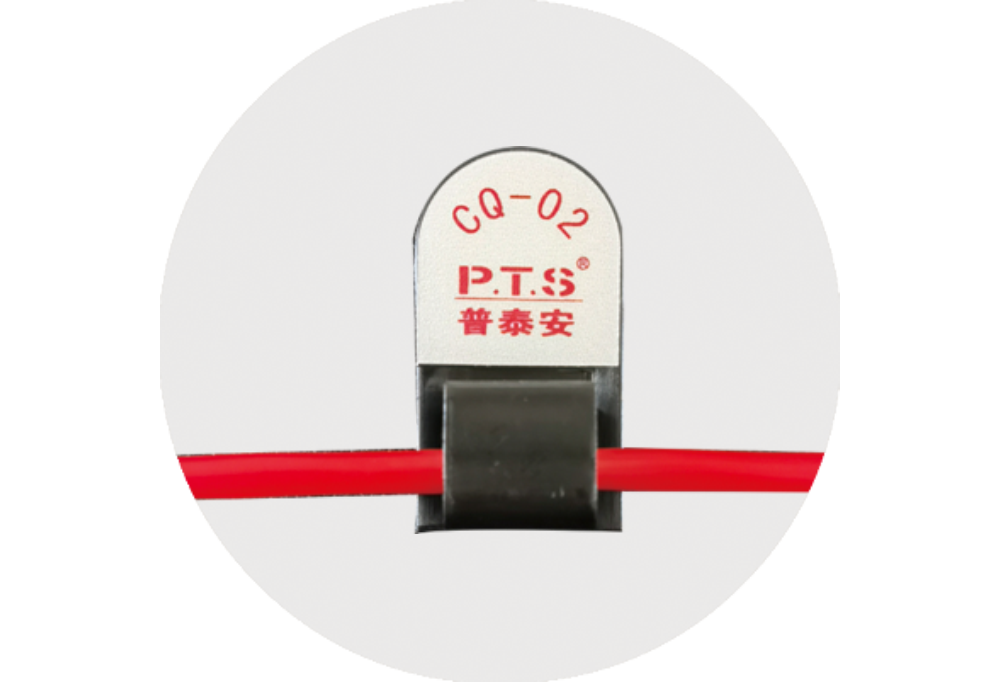

Magnetic fixture | CQ-02 | | 20x37x15 L*W*H(mm) | Easy to install, fixed with strong magnet, with no need of punching and welding supporting structure when being installed. | Single hook, glue on the back, with anti-stripping protection, suitable for narrow space | -10℃-+50℃ |

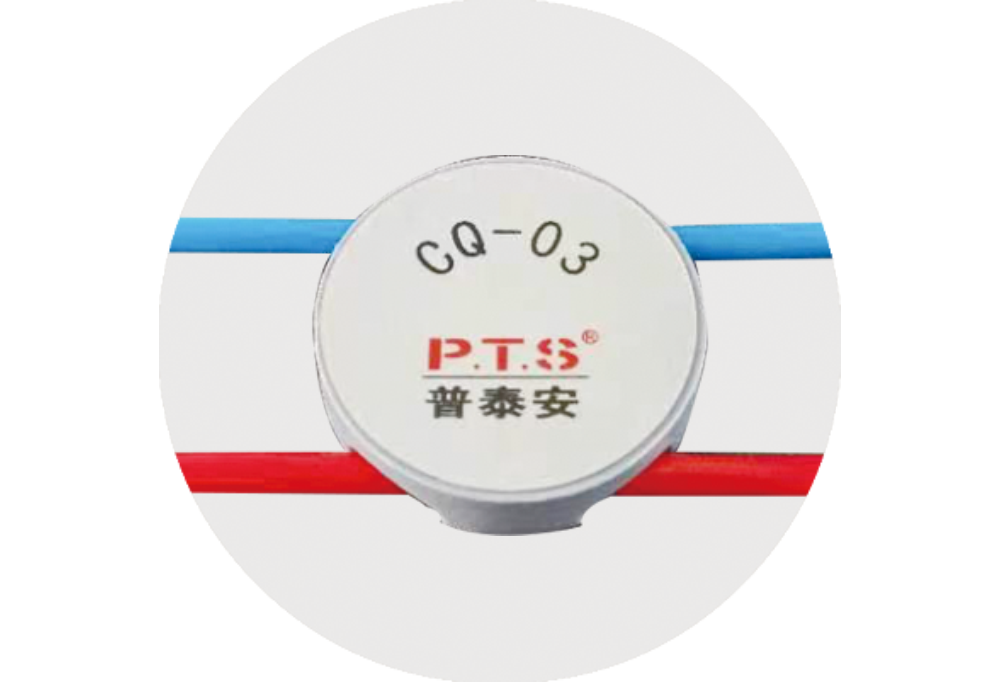

CQ-03 | | 35.5*8.5 Dia.*H(mm) | Top cover clasps and absorbs directly in the surface of the object being protected, without screws. | -10℃--+50℃ | ||

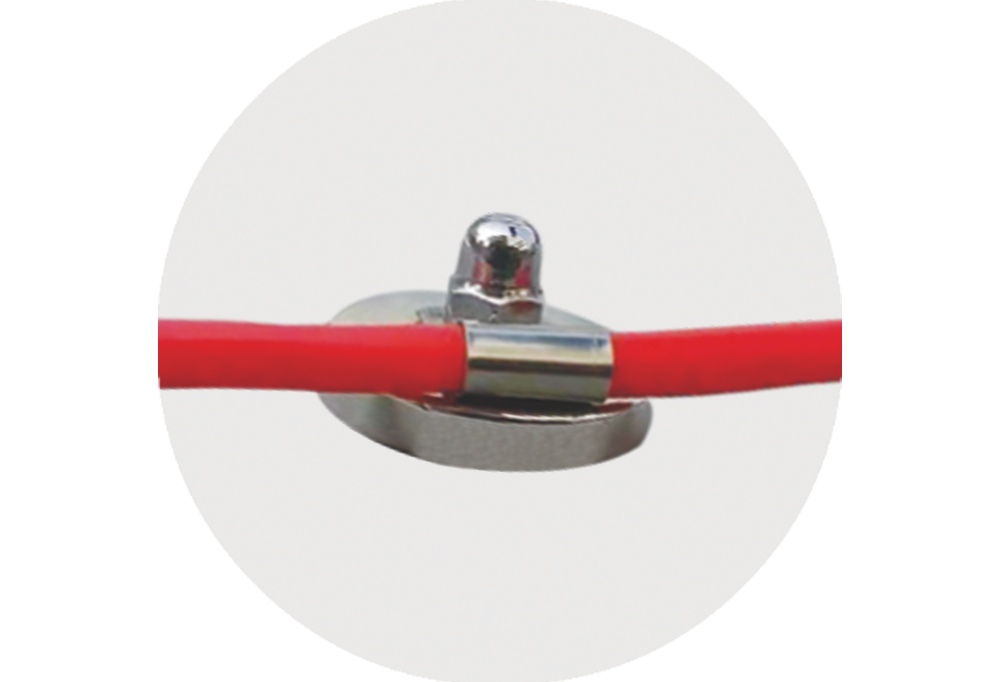

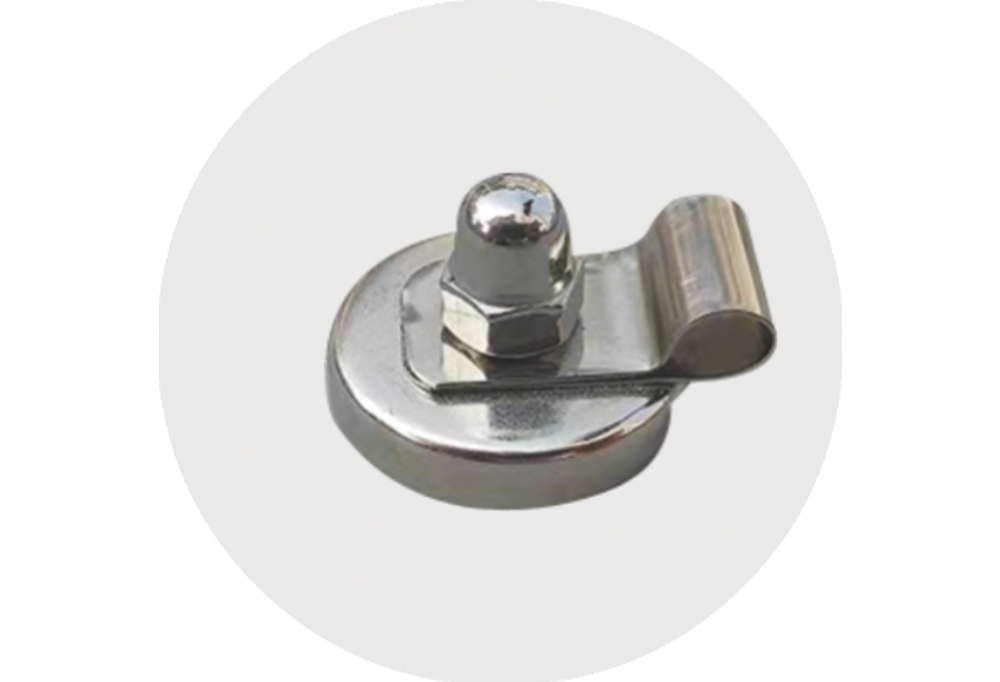

CQ-04 |
| 25*3 Dia.*H(mm)
| The fixture absorbs directly on the surface of the project. | -10℃--+50℃ | ||
Cable Tie | | It is used to fix linear heat detector on power cable when linear heat cable is used to protect the power cable. | It’s widely used for installation and fixation of linear heat detector. | -40℃--+85℃ | ||
